BEAMSCAN

PTW

Beamscan Water Phantom for Every Linac and Every User

With its built-in design and automated features, BEAMSCAN is faster and easier to use for reference dosimetry than smaller 1D water phantoms. Learn how you can perform reference dose measurements with BEAMSCAN in just a few minutes – using either BeamDose software or a UNIDOS® electrometer.



AUTOMATED

No tools. No tank shifts. No manual adjustments. Get your BEAMSCAN ready to scan in a fraction of time using BEAMSCAN Auto Setup.

 TRULEVEL

There is a faster, easier way to level the water tank. Align the scanning axes virtually – without moving the tank or scanning arms.

WI-FI

Enjoy true Wi-Fi connectivity. BEAMSCAN is the first 3D water phantom worldwide to include wireless operation and data transfer.

ULTRAFAST

BEAMSCAN combines speed and precision. With its automated setup and faster scanning speeds, BEAMSCAN cuts commissioning time in half.

BEAMSCAN provides value beyond exceptional beam commissioning capabilities. Discover eight best features for using the BEAMSCAN water phantom for reference dosimetry and routine QA tasks.

  • 15-Minute Setup

All essential setup procedures are fully automated—water flling, detector positioning, tank leveling, CAX and rotational correction. BEAMSCAN is ready to scan in less than 15 minutes—for every user.

  • Auto Fill & Full Drain

A built-in water sensor ensures that the water level is always correct, every time for every user. It controls the water pump, which automatically fills the tank to the correct height and drains it completely thanks to the inclined tank bottom—without any manual adjustments.

  • Remote Control & Measurement

BeamDose software allows users to precisely position the detector at any measurement depth and automatically calculate the dose at the defned measurement position—without entering the treatment room.

  • Auto Air Density Correction

A precision temperature sensor that measures temperature directly in the water tank and a built-in atmospheric pressure sensor enable automatic air density correction for accurate dose determination.

  • Auto Setup Wizard

Access this automated step-by-step guide from any mobile device for intuitive, wireless system setup in the treatment room—from reference run to water filling and virtual tank leveling.

  • TRUFIX® Detector Clip-in

The patented clip-in TRUFIX system is designed for fast, simple mounting and positioning of the detector both vertically and horizontally in the BEAMSCAN water phantom.

  • Auto EPOM Positioning

The TRUFIX system positions any PTW detector exactly at the effective point of measurement (EPOM), enabling a quick detector exchange without readjustment.

  • Wi-Fi

A built-in web server provides easy wireless operation and data transfer. Want to remain wired? Simply connect to the LAN socket of your BEAMSCAN system.

MP3-P and MP3-PL Water Phantoms

MP3-P and MP3-PL Water Phantoms-565
  • Versatile, application-specific solution, perfectly adapted to beam commissioning and QA requirements of particle therapy applications
  • Appropriately sized, fully automatic 3D water tank with up to 38 cm (MP3-P; vertical)/50 cm (MP3-PL; horizontal) scanning depth, parallel walls and a thin exchangeable entrance window for precise horizontal beam measurements
  • Detector positioning accuracy true to 0.1 mm
  • State-of-the-art TANDEMxdr dual-channel field class electrometer with extended measurement range also suitable for reference dose measurements
  • Full line of accessories, including specially designed water tank, for true one-stop convenience
  • Powerful BeamScan software with intuitive Navigator user interface and customizable multiple-queue drag & drop task lists
  • Available on a SCANLIFT water reservoir and carriage

MP3-XS Water Phantom System

MP3-XS Water Phantom System-565

The MP3-XS water tank is a small 3D phantom for dose distribution measurements of small radiation fields as used in stereotaxy or intra-operation radiation therapy IORT. MP3-XS is the smallest MPx family member and, like all MPx phantoms, a comprehensive LINAC QA solution for easy and accurate field measurements in vertical, horizontal and arbitrary planes according to national or international standards such as IEC 60731.

It combines outstanding precision and long-term reliability through robust and smart design and workmanship. As  industry leader  the MP3-XS can be used with a great variety of Gold standard application-specific detectors, including dosimetry in small fields on CyberKnife.

Key Features

  • Small 3D water phantom – quick and easy to set up
  • 200 mm x 200 mm horizontal and 300 mm vertical moving ranges
  • Three (3) adjustable supports for levelling and crosshairs for alignment
  • Precise 3D stainless steel moving mechanism driven by three calibration-free, high-speed stepper motors
  • Removable control pendant with TFT display
  • Menu controlled interface for manual control and easy set-up
  • TANDEM field class electrometer for reference dose measurements
  • Requires MEPHYSTO mc² software and TBA electronics for easy TPS beam data acquisition and data analysis
  • Customizable multiple-queue drag & drop task lists

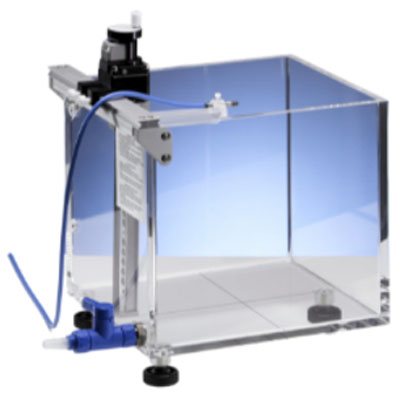

MP1 Manual MR Water Phantom

PTW 2

A radiation detector can be positioned in the waterfilled phantom using a manually driven 1D moving mechanism. The measuring signal of the radiation detector is read out with an electrometer.

Specifications

Total dimensions:350 mm x 482 mm x 514 mm ± 5 mm
Weight:approx. 9.5 kg (with moving mechanism, without water filling)
Max. water quantity:32 l
Range for horizontal adjustment:240 mm
Vertical moving range:254 mm
Reproducibility:0.1 mm
MR-condtional:yes

MP3-T Water Phantom System

MP3-T Water Phantom System-565

The MP3-T water tank has been optimized for the use with TomoTherapy® Hi·Art® treatment units with dynamic arc techniques, manufactured by Accuray®.  The all-in-one, plug-and-play solution comes as a complete package for reliable and easy commissioning and QA for TomoTherapy® Hi·Art® Systems.  Compliance  is ensured not only with IEC 60731 but also with Accuray’s own protocols for measurements of topographic profiles and output rotation stability on their TomoTherapy® Hi·Art®.  With MP3-T neither precision nor speed of commissioning and QA on your treatment unit will be compromised, no matter how complex the setup or your measurement tasks may be.

Like any of the PTW MP3 Water Phantoms the MP3-T  combines outstanding precision and long-term reliability through robust and smart design and workmanship. As industry leader the MP3-T can be used with a great variety of high-precision detectors suitable for small field dosimetry.

Key Features

  • Precise alignment of the water tank through lines on the tank itself
  • High precision stepper motors are mounted on a position for the use in the TomoTherapy® Hi·Art® gantry
  • Once adjusted to the therapy unit, all measuring tasks can be performed without moving or shifting the water tank, including longitudinal and transversal measurements
  • Highly accurate and fast stepper motors (50 mm/s)
  • Removable control pendant with TFT display
  • Menu controlled interface for manual control and easy set-up
  • Includes  the TANDEM field class electrometer and software
  • Requires MEPHYSTO mc² software and TBA electronics for easy TPS beam data acquisition and data analysis
  • Customizable multiple-queue drag & drop task lists
  • Versatile options: reference dosimetry, CT-chamber with 6 MV build-up cap
