Hospital Laundry Eqquipment
WASHER EXTRACTORS
Washer-extractors are high-powered, industrial-grade washing machines designed to thoroughly wash large loads of laundry and, crucially, extract a high percentage of water through high-speed spinning, significantly reducing drying time compared to regular washing machines.
TWR SERIES
| Drum volume: 103-153-181-242-277-365 l | Motor: 1,1 – 1,1 – 1,5 – 2,2 – 2,2 – 3 kW |
| Dry load: 10-15-18-24-28-40 kg (15 – 60 kg/h) | Electric heating power: 9-15-18-21-24-30 kW |
| Heating: Electric or Steam | G-force: 100/200 G |
| Control system: New vertical Vector Control | Cycle Time: 30-45 min |
| Dimensions (WxDxH): 785 x 890 x 1285 mm 785 x 1050 x 1285 mm 785 x 1140 x 1285 mm 869 x 1230 x 1390 mm 869 x 1320 x 1390 mm 1070 x 1290 x 1715 mm | Weight: 290 kg 300 kg 310 kg 440 kg 450 kg 600 kg |
Compact
Maximum efficiency in tight spaces thanks to compact dimensions and zero-space adjacent placement.
High tech
Fast and easy set-up and copying of washing and chemical programs through the USB ports on the machines.
Smart
Instant overview of machine status with the smart Progress Bar
User-friendly
Simple and easy-to-use user interface data entry and follow up processes.
Practical
Easy loading and unloading with the wide-swing large loading door and the conical drum face.
Reliable
A high precision drum shaft with a long life time against fracturing.

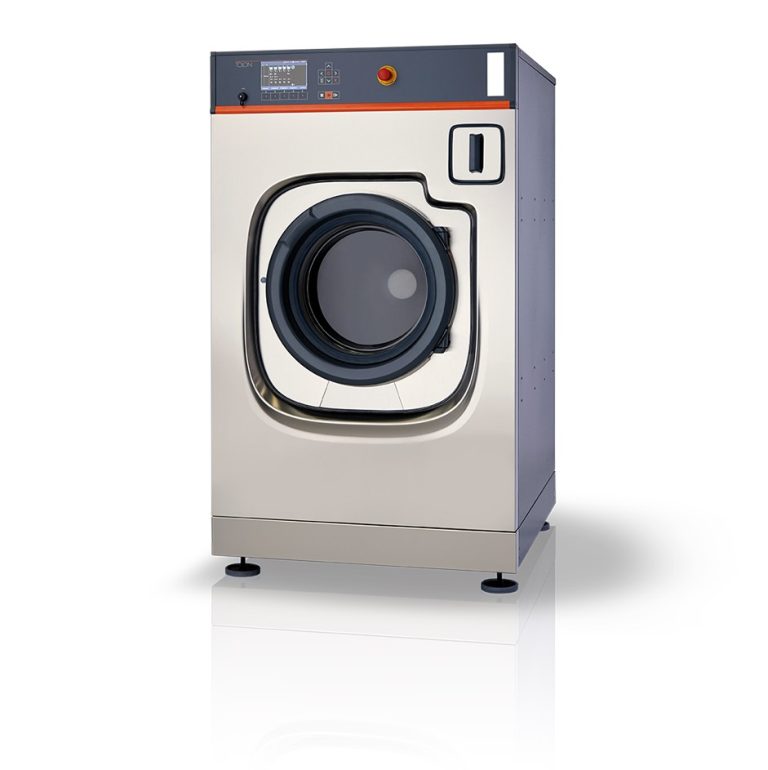

TWE10
| Drum volume: 103 l | Motor: 1,5 kW |
| Dry Load: 10 kg (15 kg/h) | Electric heating power: 9 kW |
| Heating: Electric or Steam | G-force: 360 G |
| Control System: Programmable automatic control | Cycle Time: 30-45 min |
| Dimensions (WxDxH): 880 x 967 x 1500 mm With plinth: 880 x 976 x 1710 mm | Weight: 438 kg With plinth: 460 kg |
Compact
Maximum efficiency in tight spaces thanks to compact dimensions and zero-space adjacent placement.
High tech
Fast and easy set-up and copying of washing and chemical programs through the USB ports on the machines.
Smart
Instant overview of machine status with the smart indicator light.
User-friendly
Simple and easy-to-use user interface data entry and follow up processes.
Practical
Easy loading and unloading with the wide-swing large loading door and the conical drum face.
Reliable
A high precision drum shaft with a long life time against fracturing.
TWE60
| Drum volume: 579 l | Motor: 11 kW |
| Dry Load: 60 kg (90 kg/h) | Electric heating power: 30 kW |
| Heating: Electric or Steam | G-force: 360 G |
| Control System: Programmable automatic control | Cycle Time: 30-45 min |
| Dimensions (WxDxH): 1745 x 1570 x 1910 mm | Weight: 1925 kg |
Compact
Maximum efficiency in tight spaces thanks to compact dimensions and zero-space adjacent placement.
High tech
Fast and easy set-up and copying of washing and chemical programs through the USB ports on the machines.
Smart
Instant overview of machine status with the smart indicator light.
User-friendly
Simple and easy-to-use user interface data entry and follow up processes.
Practical
Easy loading and unloading with the wide-swing large loading door and the conical drum face.
Reliable
A high precision drum shaft with a long life time against fracturing.
TBW16 – 70
| Drum volume: 158 l – 220 l – 266 l – 347 l – 489 l – 694 l | Motor: 2,2 kW – 2,2 kW – 4 kW – 4 kW – 5,5 kW – 7,5 kW |
| Dry Load: 16 kg – 22 kg – 27 kg – 35 kg – 49 kg – 70 kg | Electric heating power: 12 kW – 18 kW – 18 kW – 27 kW – 36 kW – 45 kW |
| Heating: Electric, Steam or Dual | G-force: 350 – 375 G |
| Control System: Programmable control, touch screen | Weight: 438 kg – 471 kg – 886 kg – 926 kg – 1063 kg – 1190 kg |
| Dimensions (WxDxH): 984 x 914 x 1398 mm 1184 x 914 x 1398 mm 1201 x 1098 x 1580 mm 1359 x 1098 x 1580 mm 1654 x 1098 x 1580 mm 2061 x 1098 x 1580 mm |
- Barrier washers
- 2 opposed doors for loading and unloading. Door locks with safety opening.
- G-force 350 for TBW 16 and TBW22 and G-force 375 for TBW27, TBW35, TBW50 and TBW70
- Grey skin plate outer casing
- Stainless steel AISI304 drum and tub
- Electric, steam, or dual heating
- CE approval
- Motor brake for automatic drum positioning
- 8 programmable signals for automatic liquid dosing
- 7” touch screen control with 37 languages
- Imbalance inverter for elongating the components’ lifetime and reducing washing times
- Standard 2 water inlets
- All barrier washers incorporate the necessary features for WETCLEANING
TUMBLE DRYERS
In a hospital setting, a “Hospital Tumble Dryer” refers to a commercial-grade, high-capacity machine designed to efficiently and hygienically dry large quantities of laundry, such as linens, scrubs, and other textiles, used in healthcare facilities.
TTD28
| Capacity: 528 l | Motor: 0,55kW |
| Dry Load: 28 kg (48 kg/h) | Electric heating power: 31,2 kW |
| Heating: Electric, Steam or Gas | Fan Power: 1,1 kW |
| Control System: Programmable automatic control | Dimensions (WxDxH): 1166 x 1522 x 1971 mm |
| Cycle time: Electric 40-45 min | Weight : 460 kg |
Minimum space
More adjacent dryers can be used as the space needed by the swing door is eliminated.
Ergonomic
Easy to remove lint formed during the process with the wide, easy to access air filters.
Smart
Instant overview of machine status with the smart indicator light.
Fast
Fast unloading and easy use in tight spaces with sliding doors.
Efficient
More heat transferred to the drying air with the specially designed large transfer surface and steam coils.
TTD40
| Capacity: 808 l | Motor: 1,1 kW |
| Dry Load: 40 kg (68 kg/h) | Electric heating power: 36 kW |
| Heating: Electric, Steam or Gas | Fan Power: 2,2 kW |
| Control System: Programmable automatic control | Dimensions (WxDxH): 1416 x 1528 x 2191 mm |
| Cycle time: Electric 40-45 min | Weight: 615 kg |
Minimum space
More adjacent dryers can be used as the space needed by the swing door is eliminated.
Ergonomic
Easy to remove lint formed during the process with the wide, easy to access air filters.
Smart
Instant overview of machine status with the smart indicator light.
Fast
Fast unloading and easy use in tight spaces with sliding doors.
Efficient
More heat transferred to the drying air with the specially designed large transfer surface and steam coils.
TTD110
| Capacity: 2360 l | Motor: 5,5 kW |
| Dry Load: 110 kg (165 kg/h) | Electric heating power: – |
| Heating: Steam or Gas no Electric | Fan Power: 7,5 kW |
| Control System: Programmable automatic control | Dimensions (WxDxH): 1580 x 2730 x 2700 mm |
| Cycle time: Gas 40 min | Weight: 1840 kg |
Minimum space
More adjacent dryers can be used as the space needed by the swing door is eliminated.
Ergonomic
Easy to remove lint formed during the process with the wide, easy to access air filters.
Smart
Instant overview of machine status with the smart indicator light.
Fast
Fast unloading and easy use in tight spaces with sliding doors.
Efficient
More heat transferred to the drying air with the specially designed large transfer surface and steam coils.
TRD11
| Capacity: 210 l | Drum motor: 0,37 kW |
| Dry Load: 10,5 kg (28,6 kg/h) | Total Electric Power: 12,67 kW |
| Heating: Electric, Steam or Gas | Fan Motor: 0,25 kW |
| Control System: Digital control, electronic control | Dimensions (WxDxH): 785 x 855 x 1694 mm |
| Cycle time: 30 min | Weight : 172 kg |
- Tumble dryer in skin plate, cream color
- Big loading door (opening of 180°)
- Direct drive through a gearbox, no pulley
- Time and temperature selection
- Reverse drum: all models offer the reverse turning of the drum
- Drum in galvanized steel
- Digital control, electronic control. Easy and intuitive to use, the electronic control offers a complete control of the process
- Radial airflow circuit
- New filter drawer with wide surface and improved airflow
- Cool down: anti-wrinkle at the end of cycle
- Models available in electric, gas or steam heating
- Self-Service: digital range have several payment options for laundromats; to work with centralized payment systems, with coin / token, or with prepay card systems. Electric and gas heated models
TRDS11
| Capacity: 2 x 210 l | Drum motor: 2 x 0,37 kW |
| Dry Load: 21 kg (36 kg/h) | Total Electric Power: 25,34 kW |
| Heating: Electric, Steam or Gas | Fan Motor: 2 x 0,25 kW |
| Control System: Digital control, electronic control | Dimensions (WxDxH): 785 x 972 x 1980 mm |
| Cycle time: 30 min | Weight : 260 kg |
- Tumble dryer in skin plate, cream color
- Big loading door (opening of 180°)
- Direct drive through a gearbox, no pulley
- Time and temperature selection
- Reverse drum: all models offer the reverse turning of the drum
- Drum in galvanized steel
- Digital control, electronic control. Easy and intuitive to use, the electronic control offers a complete control of the process
- Radial airflow circuit
- New filter drawer with wide surface and improved airflow
- Cool down: anti-wrinkle at the end of cycle
- Models available in electric, gas or steam heating
- Self-Service: digital range have several payment options for laundromats; to work with centralized payment systems, with coin / token, or with prepay card systems. Electric and gas heated models
IRONERS
“Hospital ironers,” also known as flatwork ironers or roller ironers, are large commercial appliances used in healthcare facilities to efficiently iron and dry large quantities of linens, uniforms, and other textiles.
TFI3516
| Performance: 68 kg/h | Electric heating power: 24 kW |
| Working width: 1640 mm | Motor: Roll motor: 0,37 kW |
| Roll diameter: 350 mm | Dimensions (WxDxH): 2554 x 759 x 1251 mm |
| Heating: Electric or Gas | Weight: 725 kg |
User-friendly
Simple and easy to use screens providing data entry and follow up processes.
High tech
Fast and easy set-up of programs through the USB ports on the machines.
TI5
| Working width: 3000 / 3300 | Ironing operating temperatures: 150-230 °C |
| Roll diameter: 1 x 800 mm / 2 x 800 mm | Operating Bar: 7-10 bar |
| Heating: Steam or Gas | Dimensions (WxDxH): 2900 x 4740 x 3000 mm |
| Ironing speed (max & min): 5-17 m/min | Weight: 6950 kg |
| Compressed air consumption: 130 L/Roller Rising | Gas Consumption: 14,6 Nm³/h |
| Electric Consumption: 19,0 KW |
User-friendly
Simple and easy to use screens providing data entry and follow up processes.
High tech
Fast and easy set-up of programs through the USB ports on the machines.
TOWEL FOLDER
In a hospital setting, a “towel folder” refers to a machine designed to automatically fold towels and linen efficiently, streamlining the laundry process and ensuring consistent presentation.
TTF200
| Number of folding lanes: 3/ optional 4 | Motor: 1,5 kW |
| Folding number: 2 x 2 | Minimum towel size: 450 x 600 mm |
| Weight: 1100 kg | Maximum towel size: 1200 x 2000 mm |
| Dimensions (WxDxH): 1500 x 3920 x 1520 mm |
User-friendly
Simple and easy-to-use screens providing data entry and follow up processes.
High tech
Fast and easy set-up of programs through the USB ports on the machines.
Practical
TFF200 transfers the folded towels to the packing station by means of the flat-pack delivery conveyer.
